High Performance Fixed Gas Detector With 4-20mA Or RS485 Output Optional

Name: High Performance Fixed Gas Detector With 420mA Or RS485 Output Optional
Brand: Bosean
Price: 1 USD

Brand Name : Bosean

Model Number : bh-60

Certification : CE,FCC,ATEX,ROHS,SIL

Place of Origin : Zhengzhou,Henan,China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000PCS/DAY

Delivery Time : 3-8 WORK DAYS

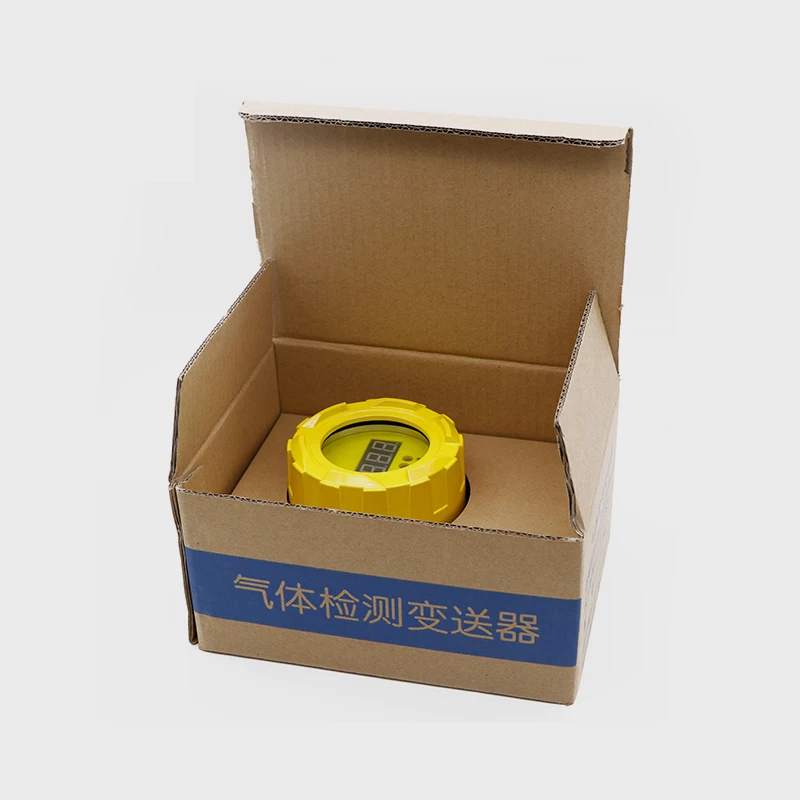

Packaging Details : each set detector alarm will be packed with the export standard carton package or aluminum box or as per customer require

Working Voltage : 15~30VDC

Sampling : Diffusion

Sensor : Catalytic Sensor or Imported British Sensor

Safe Degree : Intrinsically Safe

Response Time : <30s

Output Signal : 4-20mA/RS485

Indication : LED

Product Name : Fixed H2s Gas Detector

Contact Now

Bosean gas detector H2S Gas Detector / Online Fixed Gas Monitor

Description

BH-60 fixed gas detector is a new type of gas detector developed and produced in combination with the company's many years of experience in gas detection. It is used to detect the concentration of flammable gases or other toxic and harmful gases in the air. When the concentration reaches or exceeds the preset alarm value. At the same time, the controller will issue an audible and visual alarm, and promptly take measures to prevent the explosion and poisoning accidents, thus ensuring the safety of life and property.

BH-60 fixed gas detector adopts advanced catalytic gas sensor or electrochemical sensor, which can translate the gas concentration in the air to the digital signal output. RS485/4-20mA connect with gas controller.

High Performance Fixed Gas Detector With 4-20mA Or RS485 Output Optional

Features:

4-20mA or RS485 output optional
EX certificate
Stainless steel housing for extremely harsh working conditions
International certification, through ATEX, CE and other international certifications, with international high-end quality
Multiple signal output
Excellent performance and long service life
Imported sensor, good stability
Sound , light alarm and LED Display

High Performance Fixed Gas Detector With 4-20mA Or RS485 Output Optional

Parameters

Product type	BH-60 fixed gas detector
Response time	<30S
Power supply	DC24V±10%
Working temperature	-20ºC~50ºC
Output current	4-20mA
Working humidity	0-95%RH (no dew)
Contact output	Free contact output, max power 1kW
Single input	4~20mA and RS485
Installation method	Wall-mounted
Shell material	Aluminum
Dimensions	19015095mm(LWH)
Weight	≤ 1.6kg

Application

The detector working with the gas controller can be used to detect gas in refinery, chemical plant, LPG station, boiler room, painting plant and other places with gas exists.

Our customers and patent certificate

High Performance Fixed Gas Detector With 4-20mA Or RS485 Output Optional

Measurable Gas Meter

No	Detecting Gas	Gas	Measure Range	Resolution	Alarm Point (High / Low)
1	Combustible Gas	EX	0-100%LEL /0-100%VOL	1%LEL/1%VOL	20 / 50% LEL
2	Oxygen	O2	0-25% /30%VOL	0.1%VOL	19.5% / 23.5%VOL
3	Hydrogen Sulfide	H2S	0-50/100/200/1000 ppm	0.1 ppm	10 / 20 ppm
4	Carbon Monoxide	CO	0-500/1000/2000/5000 ppm	1 ppm	50 / 150 ppm
5	Nitrogen Dioxide	NO2	0-20/50/1000 ppm	0.1 ppm	5 / 10 ppm
6	Nitric Oxide	NO	0-250/500/1000 ppm	1 ppm	50 / 150 ppm
7	Carbon Dioxide	CO2	0-5000 ppm /0-1%/5%/10%VOL	1 ppm/0.1%VOL	1000 /2000 ppm
8	Sulfur Dioxide	SO2	0-20/50/100/200/1000 ppm	0.1 /1 ppm	5 / 10 ppm
9	Chlorine	CL2	0-20/100/1000 ppm	0.1 ppm	5 / 10 ppm
10	Ammonia	NH3	0-50/100/500/1000 ppm	0.1 ppm	20 / 50 ppm
11	Hydrogen	H2	0-1000/5000 ppm	1 ppm	50 /150 ppm
12	Phosphine	PH3	0-5/20/50/100/500/1000 ppm	0.1 ppm	5 / 10 ppm
13	Hydrogen Chloride	HCL	0-20/500/1000 ppm	0.01/0.1 ppm	5 / 10 ppm
14	Chlorine Dioxide	CLO2	0-10/50/100 ppm	0.1 ppm	5 / 10 ppm
15	Hydrogen Cyanide	HCN	0-50/100 ppm	0.01/0.1 ppm	10 / 20 ppm
16	Ethylene Oxide	C2H4O	0-10/20/50/100/200/500 ppm	0.1 /1 ppm	20 / 50 ppm
17	Ozone	O3	0-10/20/100 ppm	0.1 ppm	2 / 5 ppm
18	Formaldehyde	CH2O	0-20/50/100 ppm	0.1 /1 ppm	5 / 10 ppm
19	Hydrogen Fluoride	HF	0-1/10/50/100 ppm	0.01 /0.1 ppm	2 / 5 ppm
20	Methylbenzene		0-1/10/20/50/100 ppm	0.01 /0.1 ppm	5 / 10 ppm

Note: The above table is a general parameter. If you need other gas and range, please contact our online customer service.
